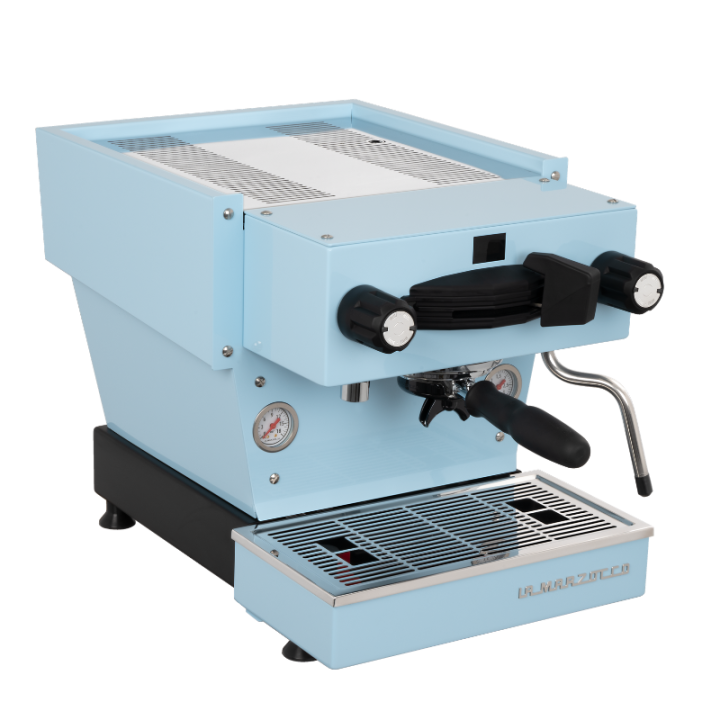

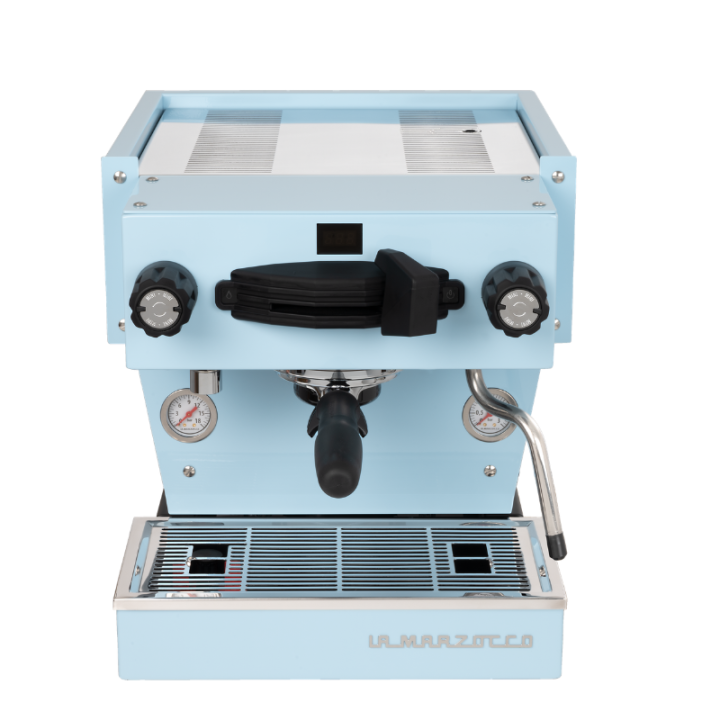

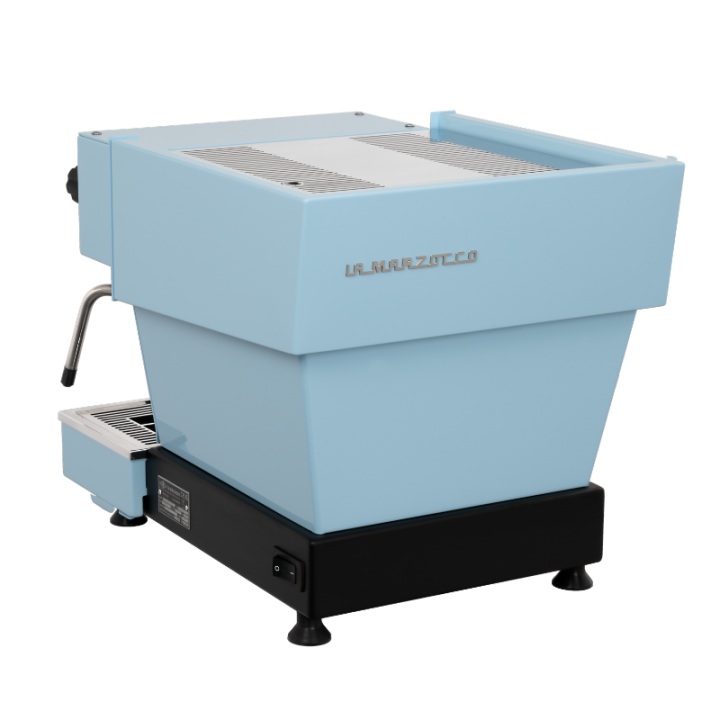

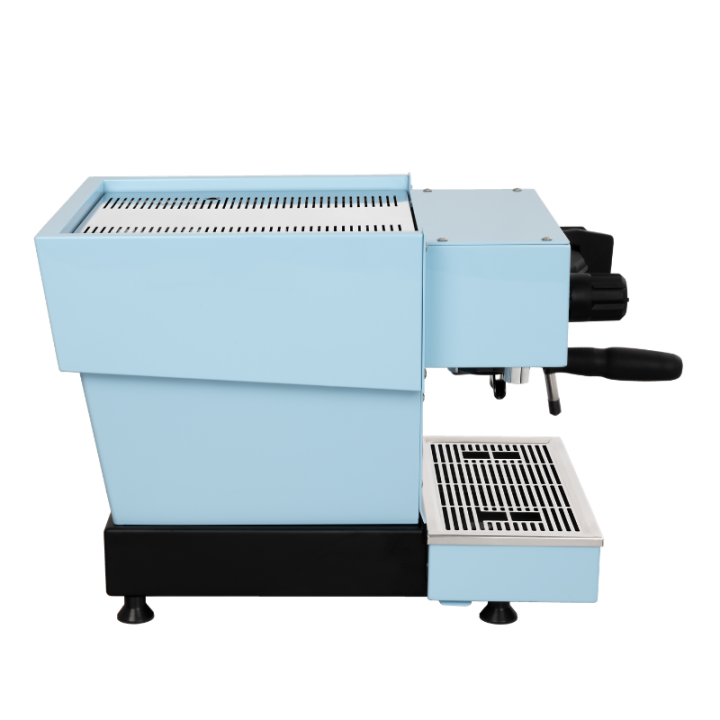

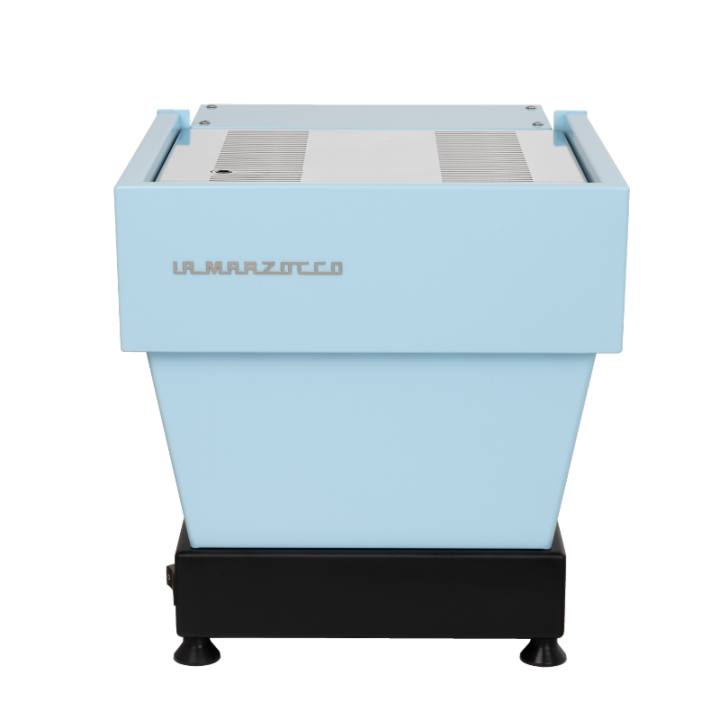

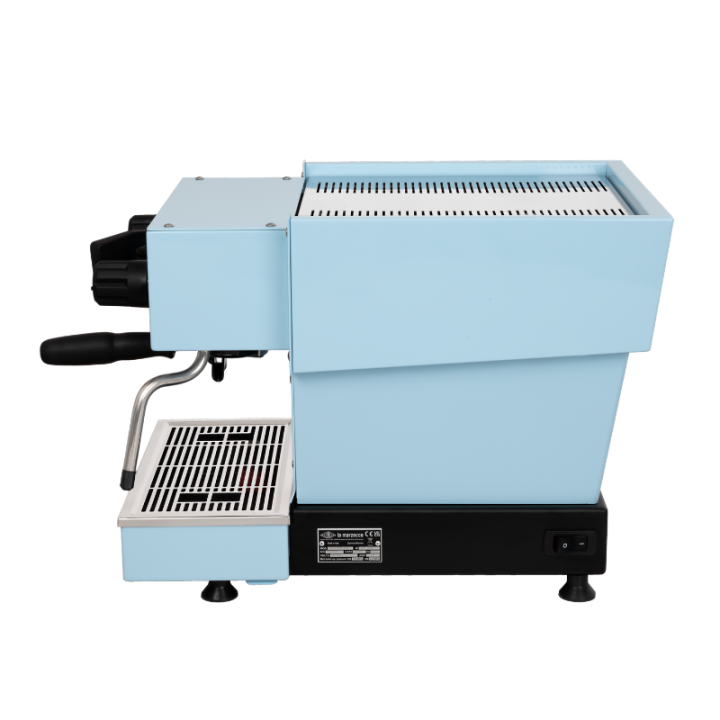

La Marzocco Linea Mini R Espresso Machine
La Marzocco Linea Mini R Espresso Machine images
The Linea Mini R, re-imagined by La Marzocco to inspire both the seasoned barista and the curious explorer, turns every espresso moment into an experience. With updated aesthetics—including the Della Pietra Curve, soft touch accessories—and advanced workflow features like Brew-by-Weight, a new pre-infusion system, and easy pump pressure adjustment—the new Linea Mini blends tradition with innovation. Created to be a tool for those who dream of crafting the perfect espresso, and a companion for adventures at home and beyond. The Linea Mini looks as beautiful as it performs, ready to serve anywhere for years to come.
Read more
Updated aesthetics, tactile soft-touch components, plus advanced workflow features like a built-in timer, Brew-by-Weight, a new pre-infusion system, and easy pump pressure adjustment. The Linea Mini is compatible with La Marzocco branded brew-by-weight scales, enhancing your precision in coffee brewing. An all-new two valve pre-infusion system offers soft saturation and a self-cleaning flow restrictor.
Pros
Commercial components: being the “mini” version of the Linea Classic means that some components such as the gasket, steam valves, shower screens are the same as in the big sister. This means that these components are extremely durable and easy to find too.
Classic Design: the Linea classic is one of the most iconic commercial coffee machines in the business. The Linea Mini looks as good in a kitchen as the Linea Classic in a Cafe.
Things to Consider
No Pressure profiling: the paddle in the Linea Mini might give you the impression of having a pressure profiling machine, however, it’s just like a normal on/off lever.
Still quite big: despite the name “Mini”, the machine is still quite big compared to the average home espresso coffee machine.
- 1×Multi-portion portafilter (convertible, bottomless without insert)
- 1×Double-spout insert for multi-portion portafilter
- 1×Single-spout insert for multi-portion portafilter
- 5×Filter baskets 7 / 8 / 14 / 17 / 21 g
- 1×Blind filter
- 1×La Marzocco single/double 58 mm tamper
- 1×300 ml milk jug
- 1×Alternative stainless steel steam wand
- 1×Espresso machine cleaner (165 g)
- 1×Water test kit
- 1×Quick start guide
- 1×User manual
- 1×Power cord
145 spare parts for La Marzocco Linea Mini R
Exploded diagrams
- BODY PANEL ASSEMBLY
- DRAIN BOX / WATER RESERVOIR ASSEM.
- STEAM AND HOT WATER ASSEMBLY
- WATER MOTOR PUMP ASSEMBLY
- HYDRAULIC ASSEMBLY
- HYDRAULIC ASSEMBLY
- HYDRAULIC ASSEMBLY
- COFFEE BOILER ASSEMBLY
- COFFEE BOILER ASSEMBLY
- COFFEE BOILER ASSEMBLY
- BODY PANEL ASSEMBLY
- ELECTRICAL SYSTEM
- FILTERS AND PORTAFILTERS
- FILTERS AND PORTAFILTERS
- HOSE AND ACCESSORIES
- WATER SUPPLY CONNECTION
- CUSTOM
- KIT MINI R TEN
Most requested
- La Marzocco Steam Tip Pro Touch D1,2 Peek
- La Marzocco Plumbing Connection Kit Lmr
- La Marzocco Capacitor Ducati Energia 7f
- La Marzocco Water Supply Screw A.5.034.01
- La Marzocco Red Logo Linea Mini
Features
- Boiler Type
- Double Boiler
- Total Boiler Capacity
- 3.17 (0.17 + 3) Liters
- Wattage
- 1600 W
- Brew Group Type
- Saturated Group System
- Pump Type
- Rotary
- Water Feed
- Reservoir/hard Plumbing
- Water Feed
- Reservoir/Optional Plumbing Kit
- Reservoir Capacity
- 2.5 Liters
Extra
- Steam Wand
- Yes (no-burn)
- Hot Water Supply
- Yes
- Variable Pressure Profile
- No
- Pid Control
- Yes
- Shot Timer
- Yes
Dimensions
- Width
- 357 Mm
- Depth
- 453 Mm
- Height
- 377 Mm
- Net Weight
- 30 Kg
- Brew Group Diameter
- 58 Mm
Materials
- Boiler Material
- Stainless Steel
- Housing Material
- Stainless Steel
- Frame Material
- Steel
- Reference code
- 03LMNRC3222
- MPN
- 26.121/F16
Compare similar
|
|
|
|
|
| Price | €4,098.36 | €6,557.38 | €4,909.84 | €3,852.46 |
|---|---|---|---|---|
| Brew Group Diameter | 58 Mm | 58 Mm | 58 Mm | 58 Mm |
| Housing Material | Stainless Steel | Stainless Steel | — | Stainless Steel |
| Total Boiler Capacity | 3.17 (0.17 + 3) Liters | 5 (1.5 + 3.5) Liters | 1.5 (0.5 + 1) Liters | 1.80 Liters, 2.0 (0.5 + 1.5) Liters |
| Wattage | 1600 W | 2300 W | 2200 W | 1600 W |
| Hot Water Supply | Yes | Yes | Yes | Yes |
| Pump Type | Rotary | Rotary | Gear | Rotary |
| Boiler Type | Double Boiler | Double Boiler | Double Boiler | Double Boiler |
| Brew Group Type | Saturated Group System | Saturated Group System | E61 | Custom Stainless Steel Group With Heating Element |
| Steam Wand | Yes (no-burn) | Yes (no-burn) | Yes (no-burn) | Yes (no-burn) |
| Variable Pressure Profile | No | Yes Manual | Flow Profiling | No |
| Width | 357 Mm | 400 Mm | 328 mm | 409 Mm |
| Depth | 453 Mm | 530 Mm | 542 mm | 465 Mm |
| Height | 377 Mm | 355 Mm | 393 mm | 400 Mm |
| Net Weight | 30 Kg | 34.5 Kg | 35 Kg | 35 Kg |
| Boiler Material | Stainless Steel | Stainless Steel | Stainless Steel | Stainless Steel |
| Brew Group Material | — | Stainless Steel | — | Chrome Plated Brass |
| Frame Material | Steel | Steel | — | — |
| Pid Control | Yes | Yes | Yes | Yes |
| Shot Timer | Yes | Yes | Yes | No |
| Water Feed | Reservoir/hard Plumbing, Reservoir/Optional Plumbing Kit | Reservoir/hard Plumbing | Reservoir/hard Plumbing | Reservoir/hard Plumbing |
| Reservoir Capacity | 2.5 Liters | 3.5 Liters | 2 Liters | 1.8 Liters |
| Category | Espresso Machine | Espresso Machine | Espresso Machine | Espresso Machine |
