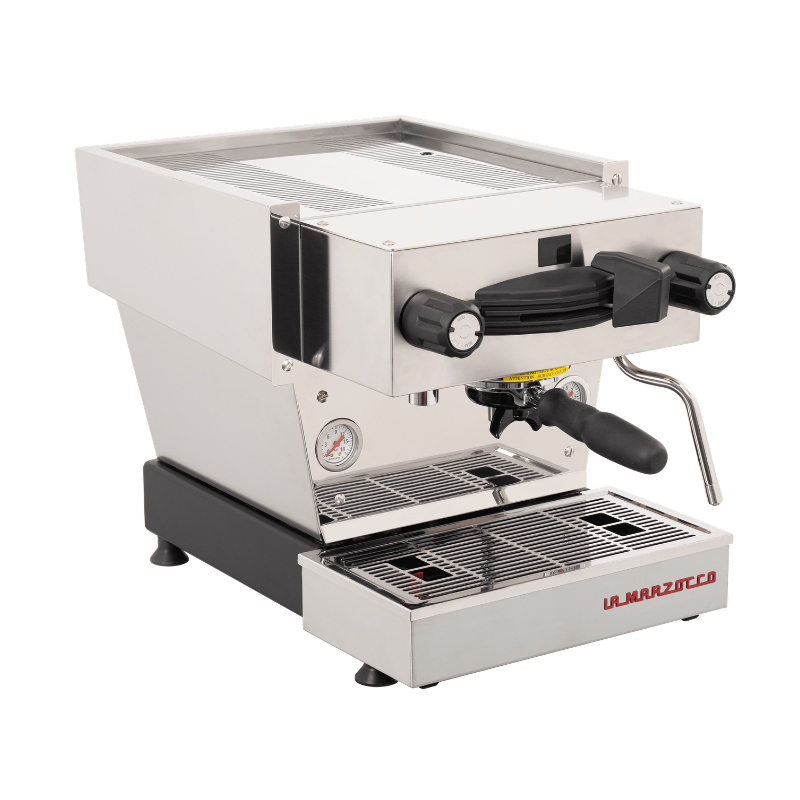

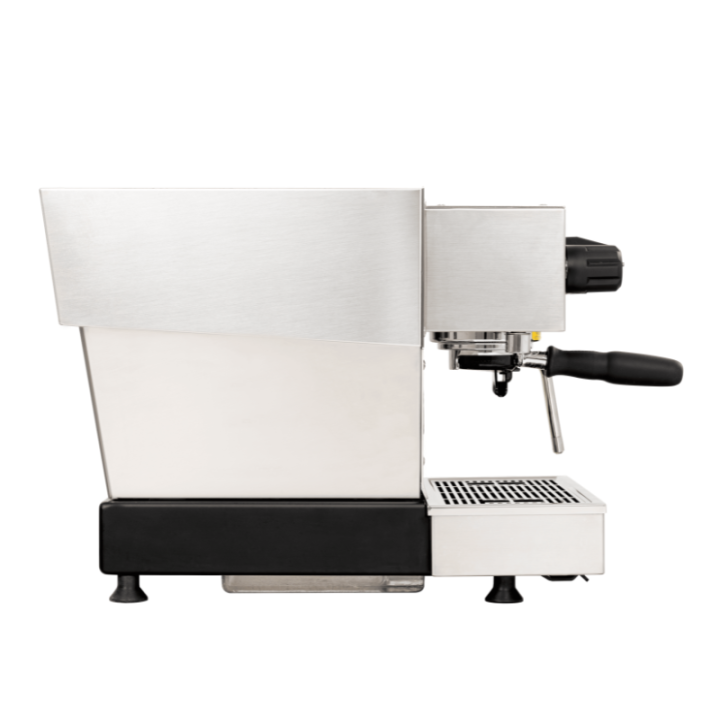

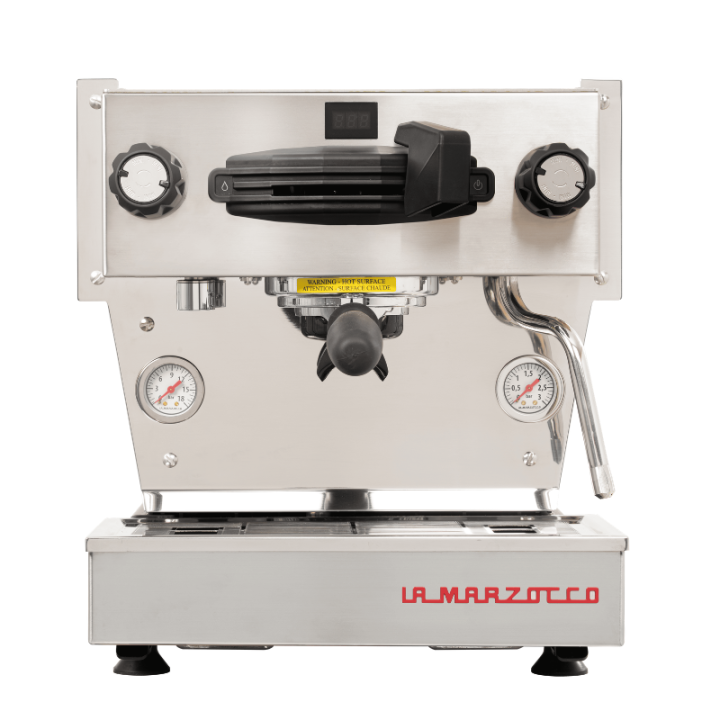

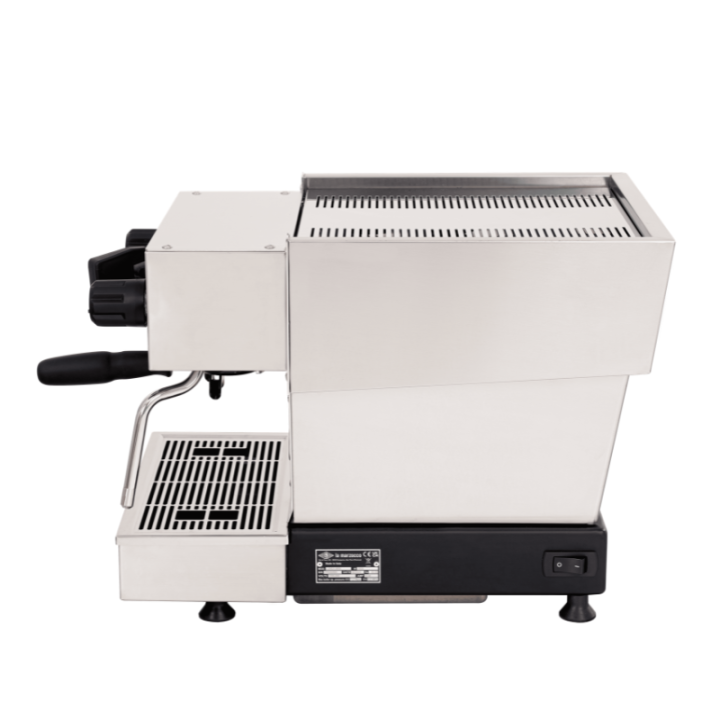

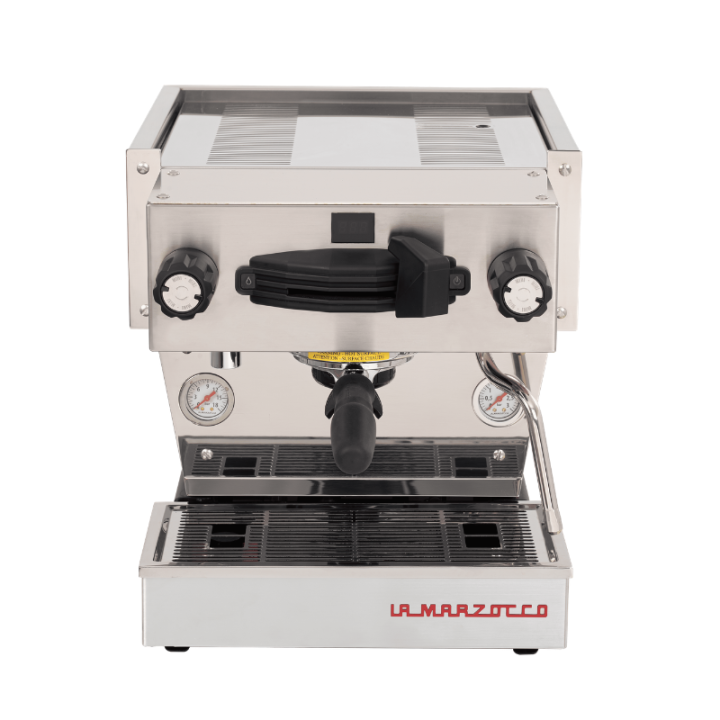

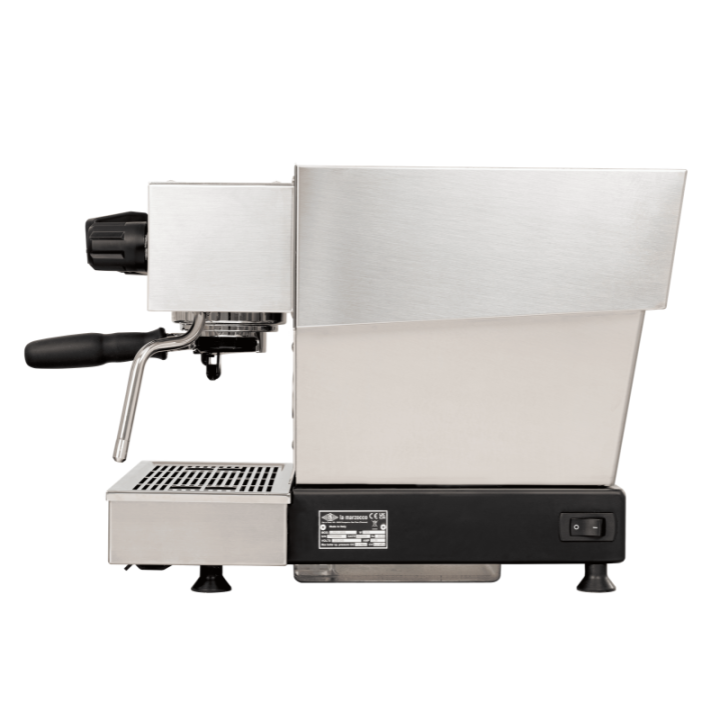

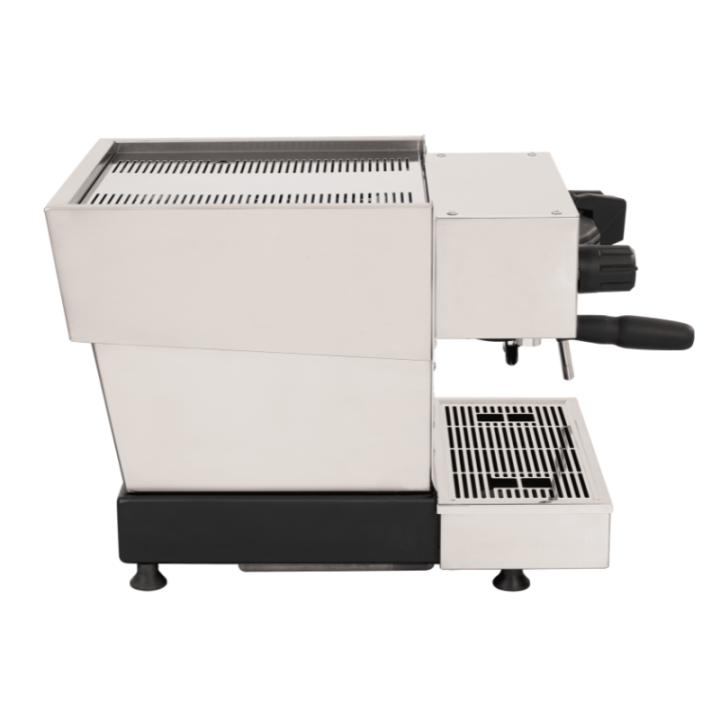

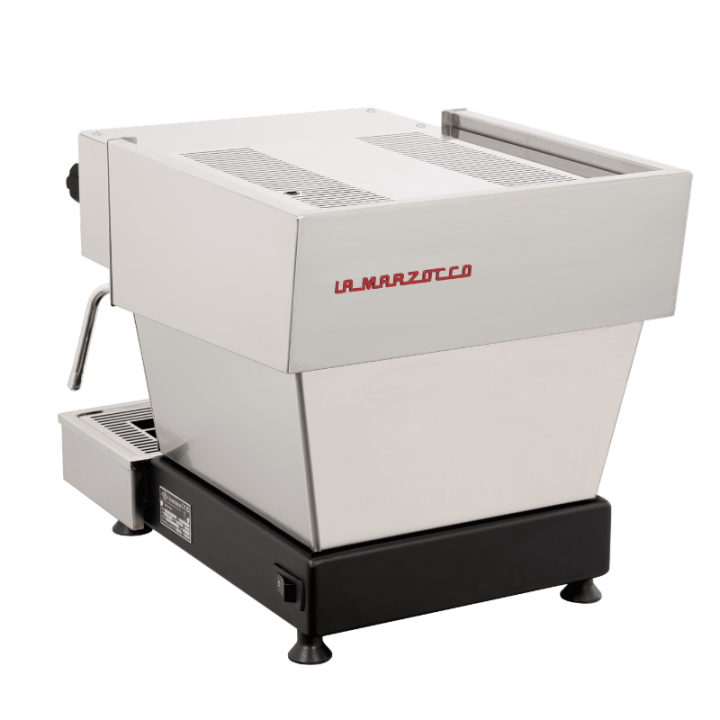

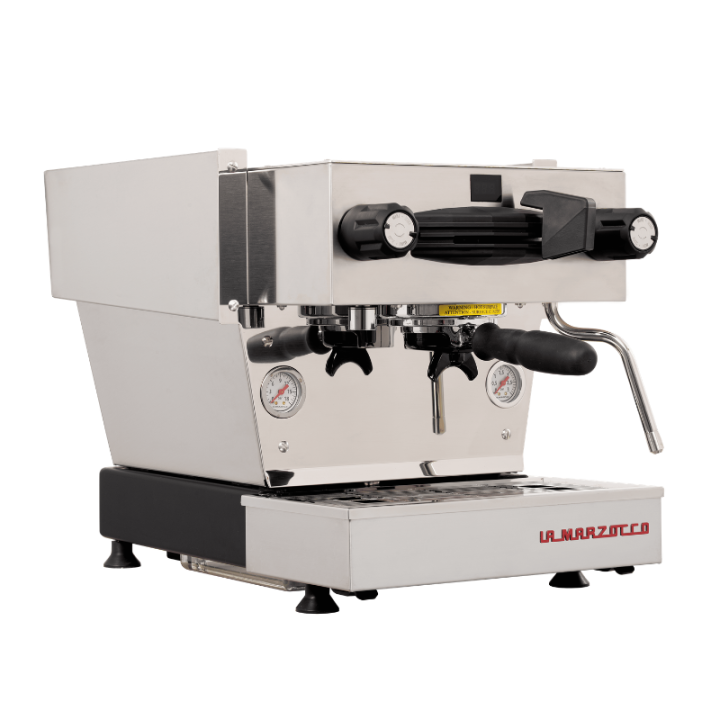

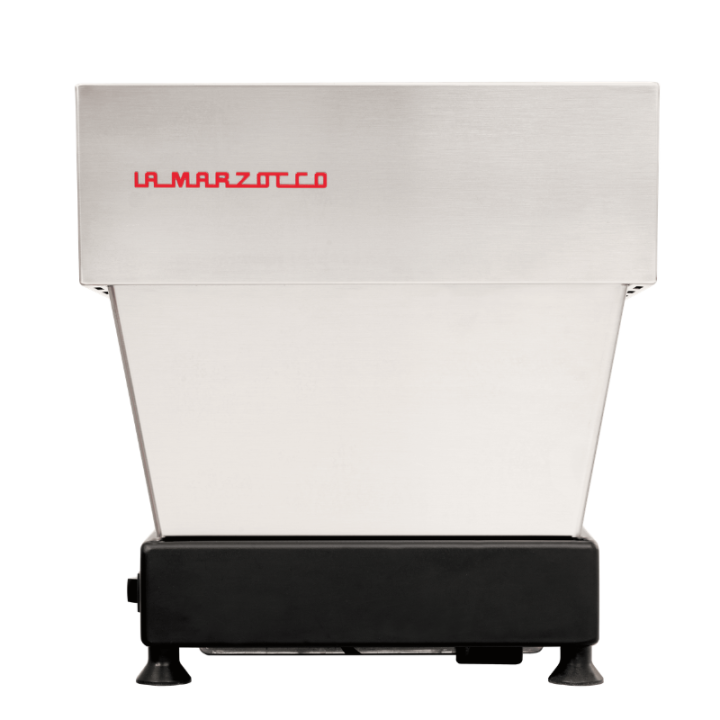

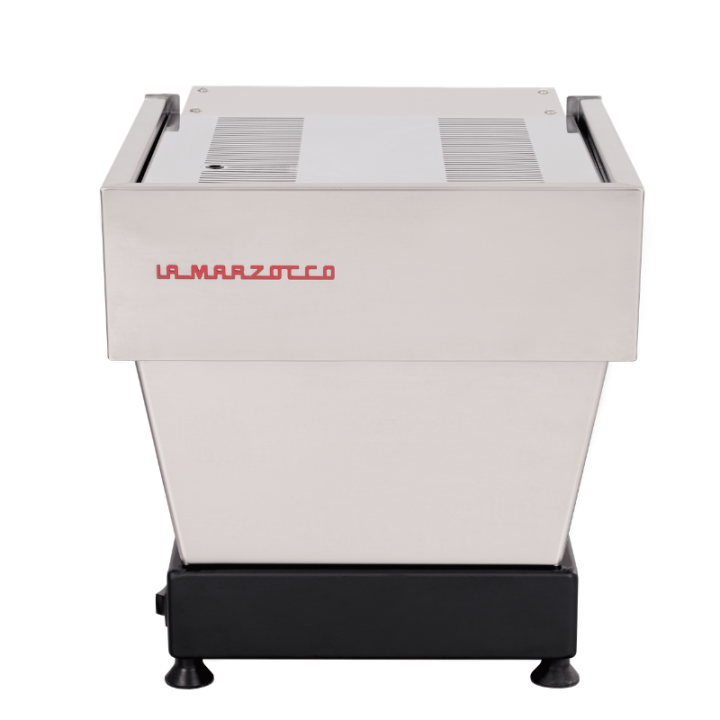

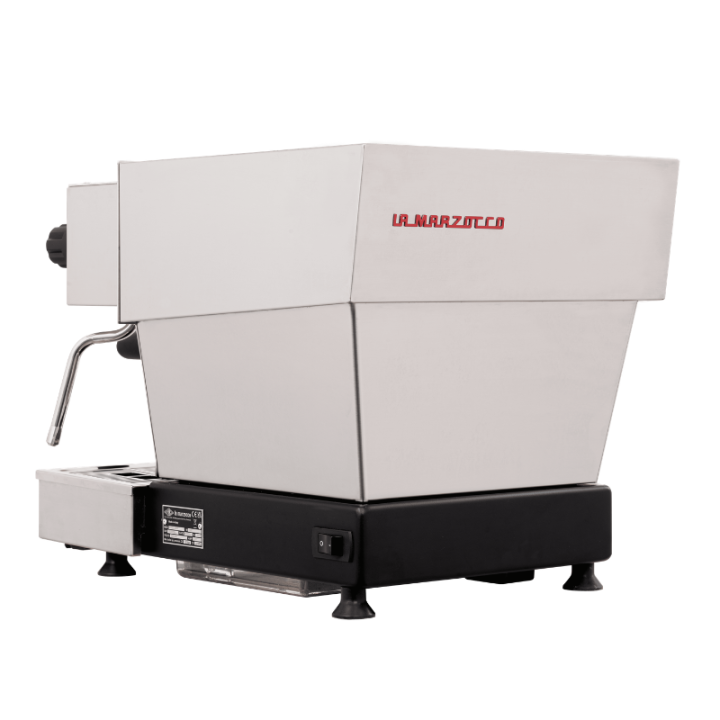

La Marzocco Linea Mini R Espresso Machine
Updated aesthetics, tactile soft-touch components, plus advanced workflow features like a built-in timer, Brew-by-Weight, a new pre-infusion system, and easy pump pressure adjustment. The Linea Mini is compatible with La Marzocco branded brew-by-weight scales, enhancing your precision in coffee brewing. An all-new two valve pre-infusion system offers soft saturation and a self-cleaning flow restrictor.
Pros
Commercial components: being the “mini” version of the Linea Classic means that some components such as the gasket, steam valves, shower screens are the same as in the big sister. This means that these components are extremely durable and easy to find too.
Classic Design: the Linea classic is one of the most iconic commercial coffee machines in the business. The Linea Mini looks as good in a kitchen as the Linea Classic in a Cafe.
Things to Consider
No Pressure profiling: the paddle in the Linea Mini might give you the impression of having a pressure profiling machine, however, it’s just like a normal on/off lever.
Still quite big: despite the name “Mini”, the machine is still quite big compared to the average home espresso coffee machine.
- 1×Multi-portion portafilter (convertible, bottomless without insert)
- 1×Double-spout insert for multi-portion portafilter
- 1×Single-spout insert for multi-portion portafilter
- 5×Filter baskets 7 / 8 / 14 / 17 / 21 g
- 1×Blind filter
- 1×La Marzocco single/double 58 mm tamper
- 1×300 ml milk jug
- 1×Alternative stainless steel steam wand
- 1×Espresso machine cleaner (165 g)
- 1×Water test kit
- 1×Quick start guide
- 1×User manual
- 1×Power cord
145 spare parts for La Marzocco Linea Mini R
Exploded diagrams
- BODY PANEL ASSEMBLY
- DRAIN BOX / WATER RESERVOIR ASSEM.
- STEAM AND HOT WATER ASSEMBLY
- WATER MOTOR PUMP ASSEMBLY
- HYDRAULIC ASSEMBLY
- HYDRAULIC ASSEMBLY
- HYDRAULIC ASSEMBLY
- COFFEE BOILER ASSEMBLY
- COFFEE BOILER ASSEMBLY
- COFFEE BOILER ASSEMBLY
- BODY PANEL ASSEMBLY
- ELECTRICAL SYSTEM
- FILTERS AND PORTAFILTERS
- FILTERS AND PORTAFILTERS
- HOSE AND ACCESSORIES
- WATER SUPPLY CONNECTION
- CUSTOM
- KIT MINI R TEN
Most requested
- La Marzocco Steam Tip Pro Touch D1,2 Peek
- La Marzocco Plumbing Connection Kit Lmr
- La Marzocco Capacitor Ducati Energia 7f
- La Marzocco Water Supply Screw A.5.034.01
- La Marzocco Red Logo Linea Mini
Features
- Boiler Type
- Double Boiler
- Total Boiler Capacity
- 3.17 (0.17 + 3) Liters
- Wattage
- 1600 W
- Brew Group Type
- Saturated Group System
- Pump Type
- Rotary
- Water Feed
- Reservoir/hard Plumbing
- Water Feed
- Reservoir/Optional Plumbing Kit
- Reservoir Capacity
- 2.5 Liters
Extra
- Steam Wand
- Yes (no-burn)
- Hot Water Supply
- Yes
- Variable Pressure Profile
- No
- Pid Control
- Yes
- Shot Timer
- Yes
Dimensions
- Width
- 357 Mm
- Depth
- 453 Mm
- Height
- 377 Mm
- Net Weight
- 30 Kg
- Brew Group Diameter
- 58 Mm
Materials
- Boiler Material
- Stainless Steel
- Housing Material
- Stainless Steel
- Frame Material
- Steel
- Reference code
- 03LMNRC0322
- MPN
- 26.121/A16
Frequently asked questions
The questions we are asked most often about this machine.
What is the difference between the Linea Mini and the Linea Mini R?
The Linea Mini R is the current version of the Linea Mini. You can tell them apart by the serial number: it starts with MI on the R and with LM on the previous Linea Mini. Compared with the previous model, this is what changes:
- Built-in shot timer: you see the seconds of the shot while you brew.
- New pre-infusion with two valves, a self-cleaning flow restrictor and custom times of up to 99 seconds.
- Pump pressure you can adjust without removing any panels.
- Updated looks, with the Della Pietra curve and soft-touch components.
- Accessories: some are different, for example the plumbing kit for the R is not the one for the previous Linea Mini.
How do I connect the Linea Mini R to the app, and what can I set from it?
Download the La Marzocco app (it is free, but you need an account) and add the machine: the first connection goes through Bluetooth, then the app passes your home Wi-Fi details to the machine. The network must be 2.4 GHz and its name must be visible: if your router only broadcasts at 5 GHz, the machine will not connect. From then on it reconnects by itself every time you switch it on.
From the app you set the coffee temperature, the steam boiler pressure, pre-infusion, the flush time (5 seconds by default), auto standby and power-on schedules, and you start the group cleaning cycle. With no internet you can use Offline mode over Bluetooth: then you can only set temperature, steam, standby and power on or off.
Does a regular Acaia Lunar work with the Linea Mini R brew by weight?
Not just any Lunar. Brew by weight works with the La Marzocco Acaia Lunar Brew by Weight scale, the La Marzocco version of the Lunar. An Acaia Lunar 2021 with a USB-C port and a serial number from AL008 onwards can be turned into a La Marzocco scale with a paid licence through the app; older Lunars with a micro-USB port, and other scales, cannot.
How it works: in the app you create your coffee station with the machine and the scale, set the weight you want in the cup and move the paddle. The scale tares by itself, the machine stops at the set weight and three beeps tell you it has finished. Scale and machine talk over Bluetooth; the machine must be online and on the latest firmware.
Can I plumb the Linea Mini R into the water mains?
Yes, with the La Marzocco plumbing kit for the Linea Mini R, which is not in the box: as standard the machine works with its 2.5 litre reservoir. The kit only fits the Linea Mini R (serial number starting with MI) and also includes the drain hose, for which La Marzocco suggests a 65 mm hole in the counter.
Once it is fitted, you switch on Plumb-in mode in the La Marzocco app (Settings, Pre-brewing & Pre-infusion, Enable Plumb-in). If you need to drain the machine, switch Plumb-in mode off first.
What water should I use in the Linea Mini R?
La Marzocco asks for water with a hardness of 7 to 10 °f (70-100 ppm), a pH of 6.5 to 8.5 and chlorides below 30 mg/l; the table in the manual also sets limits for TDS, alkalinity, iron and chlorine. The box includes a test kit with 6 strips: with the results, the La Marzocco Water Calculator tells you which treatment you need. The Specialty Coffee Association (SCA) guidelines point the same way: clean, odour-free water with a low but not zero mineral content.
Test your water before you start using the machine. If you use reverse osmosis or distilled water, La Marzocco asks you to remineralise it. If you use the reservoir, change the water every day.
How do I look after the machine?
It depends on how much you use it, but as a rule:
- after every espresso run a little water through the group (flush): it clears coffee residue from the shower screen;
- every day backflush with the blind filter and water only;
- every 1-2 weeks, more often if you use it a lot, backflush with espresso machine detergent.
Do not overdo the detergent: even in small amounts, over time it strips the grease from the gaskets and O-rings and dries them out.
From the La Marzocco app you can also start an automatic backflush.
With this routine and good quality water, the machine does not need descaling.
Do I need to descale the machine?
No. If you use the right water and keep up the routine (a flush after every coffee, a daily backflush with water and one with detergent every 1-2 weeks), descaling is not needed.
For La Marzocco what matters is the water: if it is outside the limits given in the manual, the warranty is void.
