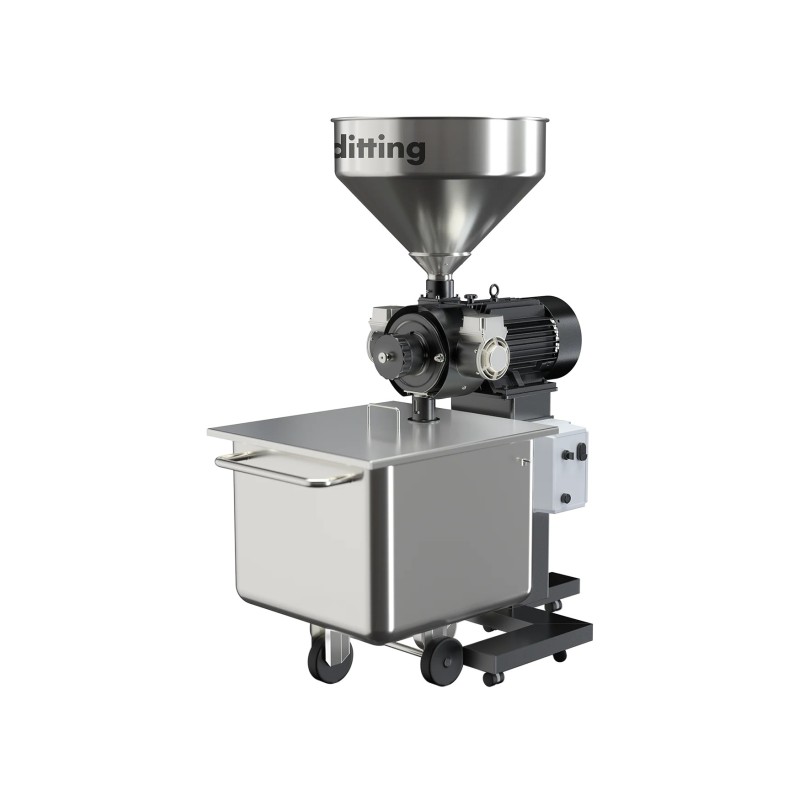

Ditting 1827 High Volume Mh Industrial Coffee Grinder
Ditting 1827 High Volume Mh Industrial Coffee Grinder images
The Ditting 1827 High Volume is an industrial grinder for roasteries and large scale coffee production: up to 300kg of ground coffee per hour on medium grinds and 280kg/h on espresso, in continuous operation. This is the machine that grinds behind the scenes of retail bags and food service supply, not a shop counter grinder.
The MH version mounts 180mm hard metal (tungsten carbide) burrs rated for 250 to 450 tonnes of coffee before replacement, roughly ten times the life of standard steel burrs. High precision stepless adjustment gives repeatable particle size across the whole range, the trait Ditting's Swiss industrial engineering is known for.
The 5.5kW three phase motor uses surface cooling and high starting torque for uninterrupted duty; the hopper takes 30kg of beans (70l) and the ground coffee container holds 200l. Net weight is 240kg including the base.
For medium and large roasteries that need consistent pre-ground quality at volume, day after day.
- 1×Funnel hopper with magnet, approx. 30 kg
- 1×Base with castors
- 1×Regrind container, approx. 200 l
Features
- Burrs Type
- Flat
- Burrs Diameter
- 180 mm
- Drive System
- Direct
- Bean Hopper Capacity
- 30 kg
- Functions
- on/off
- Number Of Settings
- Stepless
- Rpm
- 1450 rpm (50 Hz) / 1750 rpm (60 Hz)
- Power
- 5500 W
Dimensions
- Width
- 79 cm
- Depth
- 123 cm
- Height
- 160 cm
- Net Weight
- 240 kg
Materials
- Housing Material
- Steel/ Stainless Steel
- Burrs Material
- Hard metal tungsten carbide
- Bean Hopper Material
- Steel
- Reference code
- 491827MH
- MPN
Compare similar
|
|
|
|
|
| Price | €16,900.00 | €2,213.12 | €2,622.13 | €8,900.00 |
|---|---|---|---|---|
| Housing Material | Steel/ Stainless Steel | Aluminum | Aluminum | Steel/ Stainless Steel |
| Bean Hopper Material | Steel | Plastic | Plastic | Steel |
| Power | 5500 W | 1300 W | (220-240 V): 520-600 W - (110-127 V): 845 W - (100 V): 620-780 W | 5500 W |
| Burrs Type | Flat | Flat | Flat | Flat |
| Burrs Material | Hard metal tungsten carbide | Cast Steel | Special Steel | Special steel for Turkish fine |
| Drive System | Direct | Direct | Direct | Direct |
| Functions | on/off | Manual (on/off) | Grind-by-weight | on/off |
| Burrs Diameter | 180 mm | 98 Mm | 80 Mm | 180 mm |
| Bean Hopper Capacity | 30 kg | 250 Gr | 1.8 Kg | 30 kg |
| Width | 79 cm | 230 Mm | 240 Mm | 79 cm |
| Depth | 123 cm | 410 Mm | 340 Mm | 123 cm |
| Height | 160 cm | 680 Mm | 630 Mm | 160 cm |
| Net Weight | 240 kg | 24.5 Kg | 18 Kg | 240 kg |
| Number Of Settings | Stepless | Stepless | Stepless | Stepless |
| Rpm | 1450 rpm (50 Hz) / 1750 rpm (60 Hz) | 1450 | (50 Hz): 1400 / (60 Hz): 1700 | 1450 rpm (50 Hz) / 1750 rpm (60 Hz) |
| Category | Espresso Grinder | Espresso Grinder | Espresso Grinder | Espresso Grinder |
