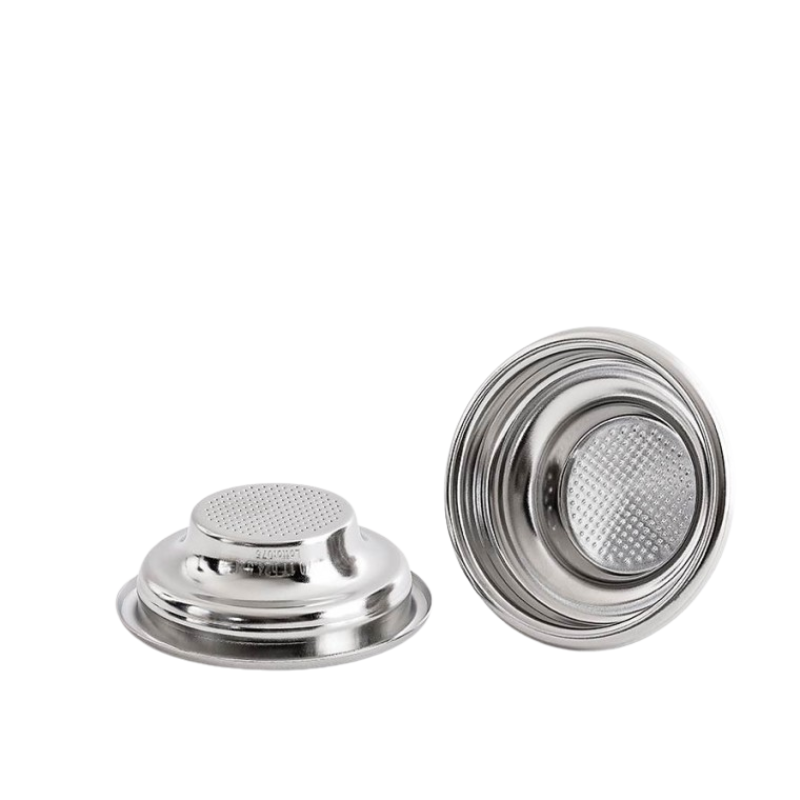

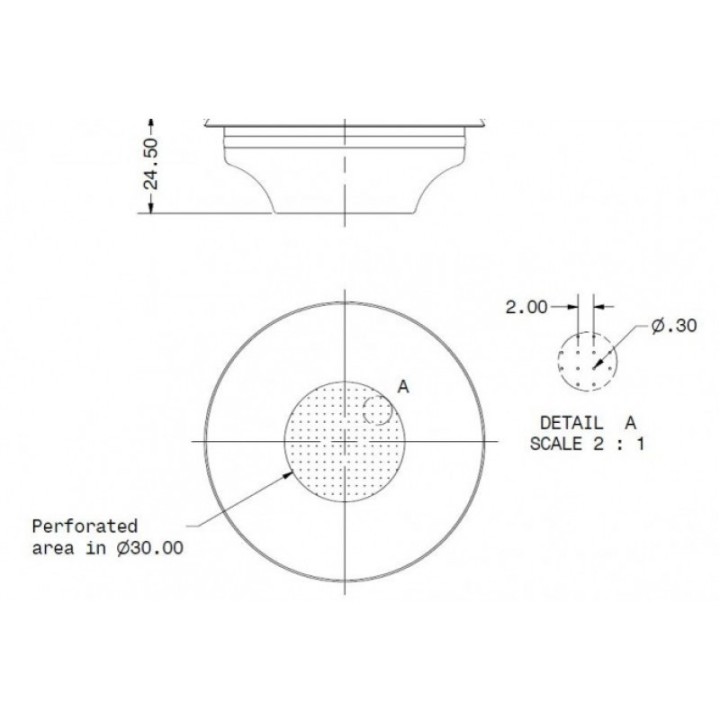

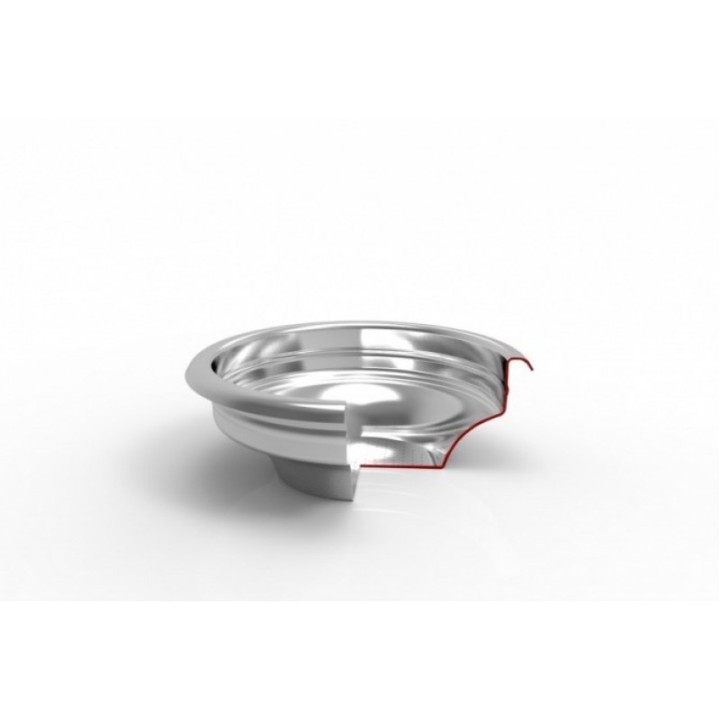

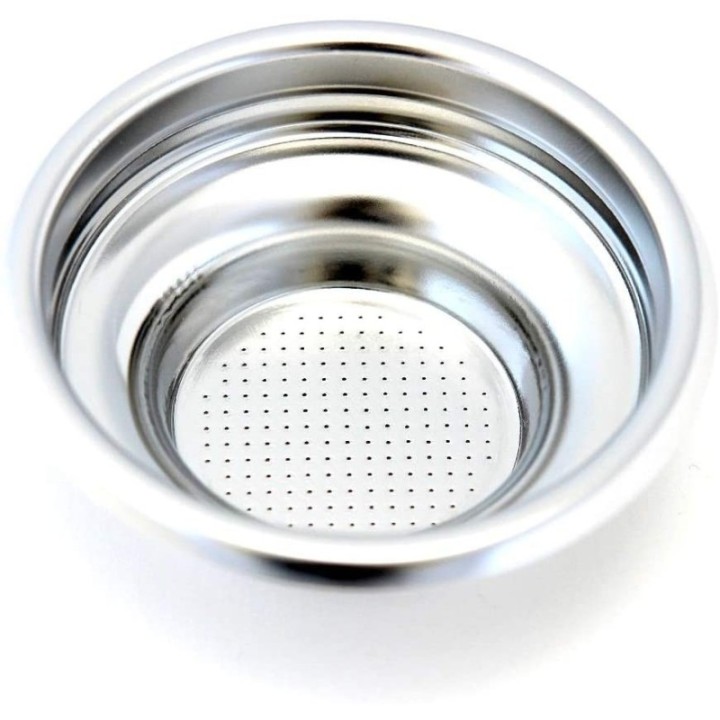

The IMS Filter B70 1T H24,5 N is a precision-engineered basket designed to improve the quality of your espresso shots. This filter basket features an optimized shape and hole pattern that enhances extraction, delivering a richer, more balanced flavor. Compatible with a wide range of espresso machines, it is perfect for baristas who are serious about their craft and want to achieve the best possible results in every shot.
| CODE |
HEIGHT |
DARK ROASTED |
MEDIUM ROASTED |
LIGHT ROASTED |
| B68 1t h24,5 E |
24.5 mm |
7.5/9.5 gr |
8/10 gr |
9.5/12 gr |
| B68 2t h24,5 M |
24.5 mm |
16/18 gr |
17/19 gr |
20/22.5 gr |
| B68 2t h26,5 E |
26.5 mm |
17/19 gr |
18.5/21 gr |
20.5/23 gr |
| B70 2tc h24 E |
24 mm |
14/16 gr |
15/17 gr |
18/21 gr |
|
|
|
| B70 1t h24,5 N |
24.5 mm |
7.5/9.5 gr |
8/10 gr |
9.5/12 gr |
| B70 2t h24,5 M |
24.5 mm |
16/18 gr |
17/19 gr |
20/22.5 gr |
| B70 2tc h26 E |
26 mm |
17/19 gr |
18.5/21 gr |
20.5/23 gr |
| B70 1t h26,5 E |
26.5 mm |
8.5/10.5 gr |
9/11 gr |
10.5/13 gr |
| B70 2t h26,5 M |
26.5 mm |
18/20 gr |
19/21 g |
22/24 gr |
| B70 2tc h28,5 E |
28.5 mm |
19/22 gr |
22/25 gr |
23/27 gr |
All tests about the capacity of the filters were made using:
Dark: 80% Arabica 20% Robusta blend
Medium: 100% Arabica Brasile
Light: Ethiopia single origin
